Super BlackMobile 1500/2000/3000
120 tph / 160 tph / 240 tph

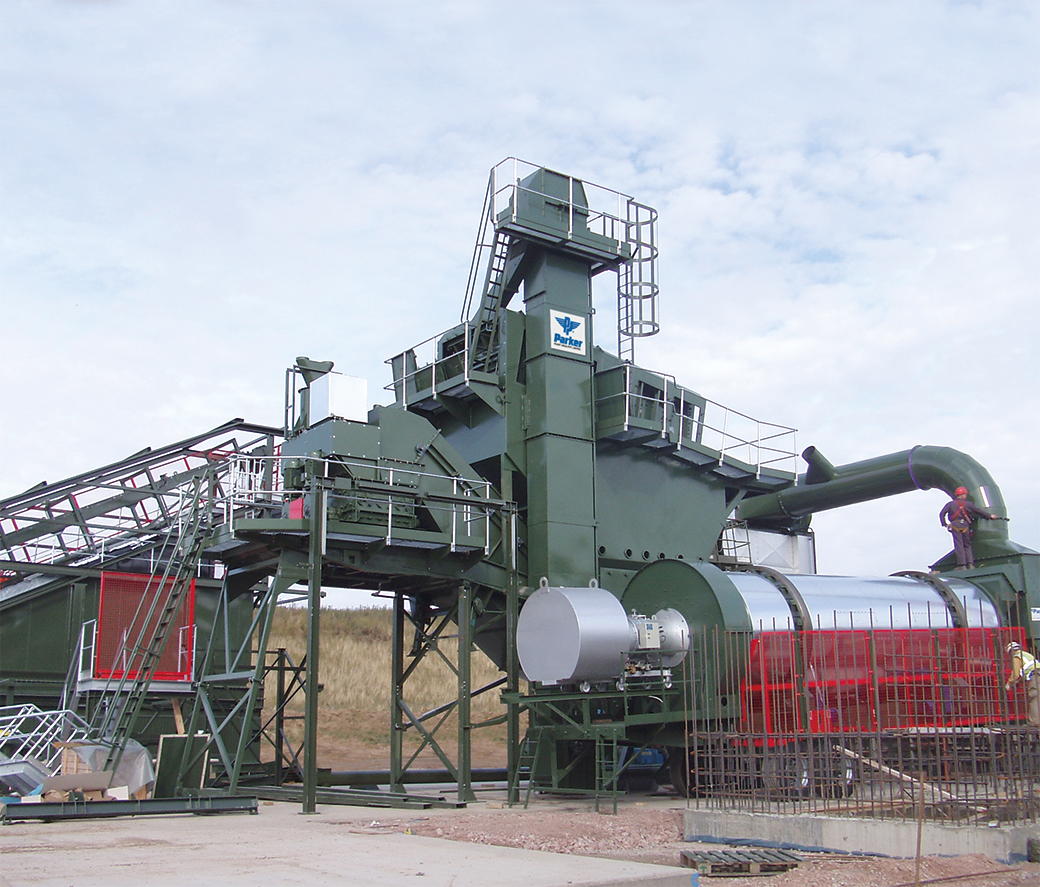

Parker Super-BlackMobile Asphalt Batch Mix Plant combines quality and mobility to provide one of the most reliable and easily transported asphalt mixing plants available anywhere in the world.
Designed to satisfy the needs of contractors who demand nothing less than the best quality asphalt which is within specification at all times, the Super-BlackMobile is the ideal solution for major road and motorway construction projects. Requiring minimal foundations, Super-BlackMobile has been a particular favourite for many international airport surfacing contracts across the world.
The three main units of the plant - cold feed, dryer and mixing sections - are fully mobile and on arrival at the site can be brought quickly into operation. Their field-proven design offers high reliability with low maintenance. Parker Plant is a leading manufacturer and supplier of mobile asphalt batch mix plants in India.
Download Catalogue
SBM1500 - 120tph
By far the most popular machine in the range, with a capacity of 120tph.
SBM2000 - 160tph
Producing up to 160tph, the SBM2000 has proven its ability to deliver high specification mixes on many airports contracts worldwide.
SBM3000 - 240tph
Able to deliver up to 240tph, the SBM3000 is the model of choice for larger production contracts.
Cold Feed
Multi-hopper, road mobile cold feed unit with built in collecting conveyor and dryer feed conveyor. Direct drive geared motor units give high reliability. Accurate variable speed control via AC motor and inverter.
Aggregate Dryer
Road mobile unit with high efficiency internal lifter design, optional insulated and clad drum. Integrated primary dust cyclones and highly efficient burner all on one chassis.
Mixing Section
Low-level, mobile unit with integral vertical hot elevator, which fold down for travelling. Heavy duty screen with fully sealed dust housing. Batch weigh hoppers for aggregate, bitumen and filler; all load-cell mounted. Fully synchronised twin shaft direct geared paddle mixer.
Technical Specifications of Asphalt Batch Mix Plant
| Units | SBM1500 | SBM2000 | SBM3000 | |||
|---|---|---|---|---|---|---|
| Plant Capacity | ||||||
| Output* | tph | 120 | 160 | 240 | ||
| Cold Feed | ||||||
| Hopper Capacity (heaped) | m³ | 10.0 | 10.0 | 12.0 | ||
| Hopper Loading Width | m | 3.0 | 3.0 | 3.0 | ||
| Belt Feeder Length | m | 1.5 | 1.5 | 1.5 | ||
| Belt Width | mm | 500 | 500 | 650 | ||
| Belt Feeder Drive | kW | 1.5 | 2.2 | 3.0 | ||
| Vibrator Fitted to Sand Hopper | YES | YES | YES | |||
| Collecting Conveyor Width | mm | 500 | 600 | 750 | ||
| Collecting Conveyor Drive | kW | 4 | 5.5 | 7.5 | ||
| Aggregate Dryer | ||||||
| Dryer Drum Diameter | m | 1.8 | 2.2 | 2.5 | ||
| Dryer Drum Length | m | 7.0 | 8.0 | 9.0 | ||
| Dryer Drive | kW | 30.0 | 45.0 | 4 x 22.0 | ||
| Dryer Capacity | tph | 120 | 160 | 240 | ||
| Air Volume | ||||||
| Dryer | m³/h | 41,885 | 62600 | 80,760 | ||
| Mixing Section Including Filler Silo | m³/h | 9,550 | 9,990 | 12,600 | ||
| Total | m³/h | 51,435 | 72,590 | 93,360 | ||
| Hot Stone Elevator, Screen & Mixing Section | ||||||
| Elevator Capacity | tph | 120 | 160 | 260 | ||
| Elevator Drive | kW | 7.5 | 11.0 | 18.5 | ||
| Screen Decks | No. | 2 (4 size + rejects) | 2 (4 size + rejects) | 2 (4 size + rejects) | ||
| Screen Length | m | 4.0 | 5.0 | 6.0 | ||
| Screen Width | m | 1.5 | 1.8 | 2.1 | ||
| Screen Drive | kW | 7.5 | 11.0 | 18.5 | ||
| Hot Storage Capacity | t | 11 | 17.7 | 28 | ||
| Hot Storage Bins | no | 4 | 4 | 4 | ||
| Batch Elevator Capacity | tph | 130 | 160 | 240 | ||
| Batch Elevator Drive | kw | 7.5 | 7.5 | 15.0 | ||
| Aggregate Weigh Hopper Capacity | kg | 1500 | 2000 | 3000 | ||
| Bitumen Weigh Hopper Capacity | kg | 225 | 300 | 450 | ||
| Filler Weigh Hopper Capacity | kg | 300 | 400 | 600 | ||
| Paddle Mixer Capacity | kg | 1500 | 2000 | 3000 | ||
| Paddle Mixer Drive | kW | 2 x 18.5 | 2 x 22.0 | 2 x 37.0 |
Benefits of Mobile Asphalt Batch Plant
- Fully mobile road towable units
- Minimum foundation required
- Fast on-site erection
- Factory pre-wired & fully tested
- Inverter controlled exhaust fan
- Dust emissions less than 20mg/Nm3
FAQs - Mobile Asphalt Batch Mix Plant
Super BlackMobile 1500 120 tph - Asphalt Batch Plant is an advanced equipment designed to produce asphalt on the go. It's crafted with cutting-edge technology for seamless operation and high-quality output, catering to projects requiring flexibility and mobility.
The Super BlackMobile 1500 120 tph stands out for its exceptional mobility and versatility. Unlike stationary plants, it can be easily transported to different job sites, offering unparalleled flexibility in asphalt production. Its advanced features ensure efficient operation and consistent quality.
The Super BlackMobile 1500 120 tph is ideal for road construction, highway maintenance, and infrastructure development projects requiring on-site asphalt production. It's versatile enough to cater to remote construction sites or urban renewal projects, offering reliability and performance for diverse applications.
The Super BlackMobile 2000 160tph - Mobile Asphalt Batch Plant is a state-of-the-art mobile asphalt mixing plant designed for on-site production of high-quality asphalt mixes. With a production capacity of 160 tons per hour, it caters to medium to large-scale construction projects. Its mobility enables easy transportation and setup at various job sites, providing flexibility in project execution.
Regular maintenance is essential to ensure optimal performance and longevity of the Super BlackMobile 2000. This includes routine inspections, lubrication of moving parts, and cleaning of components to prevent buildup and corrosion. Scheduled maintenance tasks such as belt tensioning, calibration of instruments, and replacement of wear parts should be performed according to manufacturer recommendations. Additionally, operators should adhere to proper storage and handling procedures for spare parts and consumables to ensure their effectiveness when needed. Regular maintenance not only maximizes uptime and productivity but also helps prevent costly breakdowns and repairs in the long run.
