Mobile Asphalt Batching Plant
- Home
- Mobile Asphalt Batching Plant
Super BlackMobile 1000
Mobile Asphalt Batching Plant

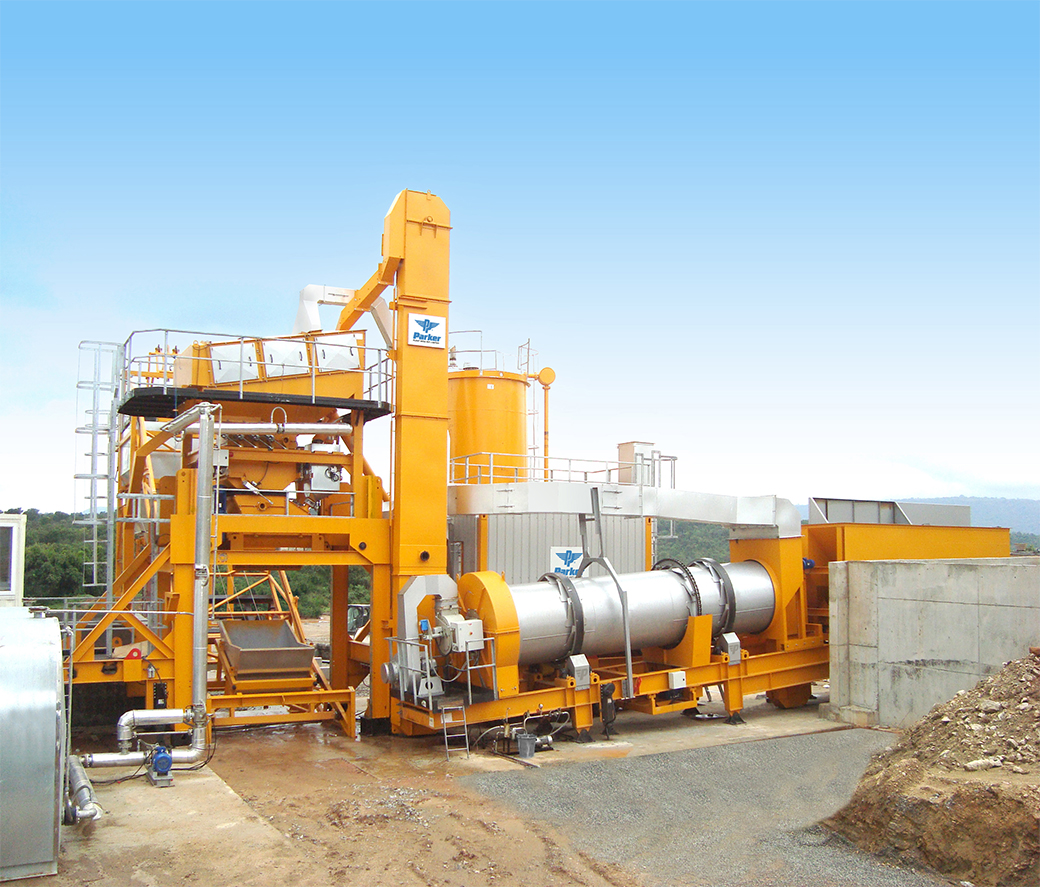

The Parker Super-Black Mobile Asphalt Plant range is designed to satisfy asphalt producers worldwide with highly efficient mobile asphalt batch plant, for whom the ability to produce high quality mix coupled with unparalleled mobility is a high priority.

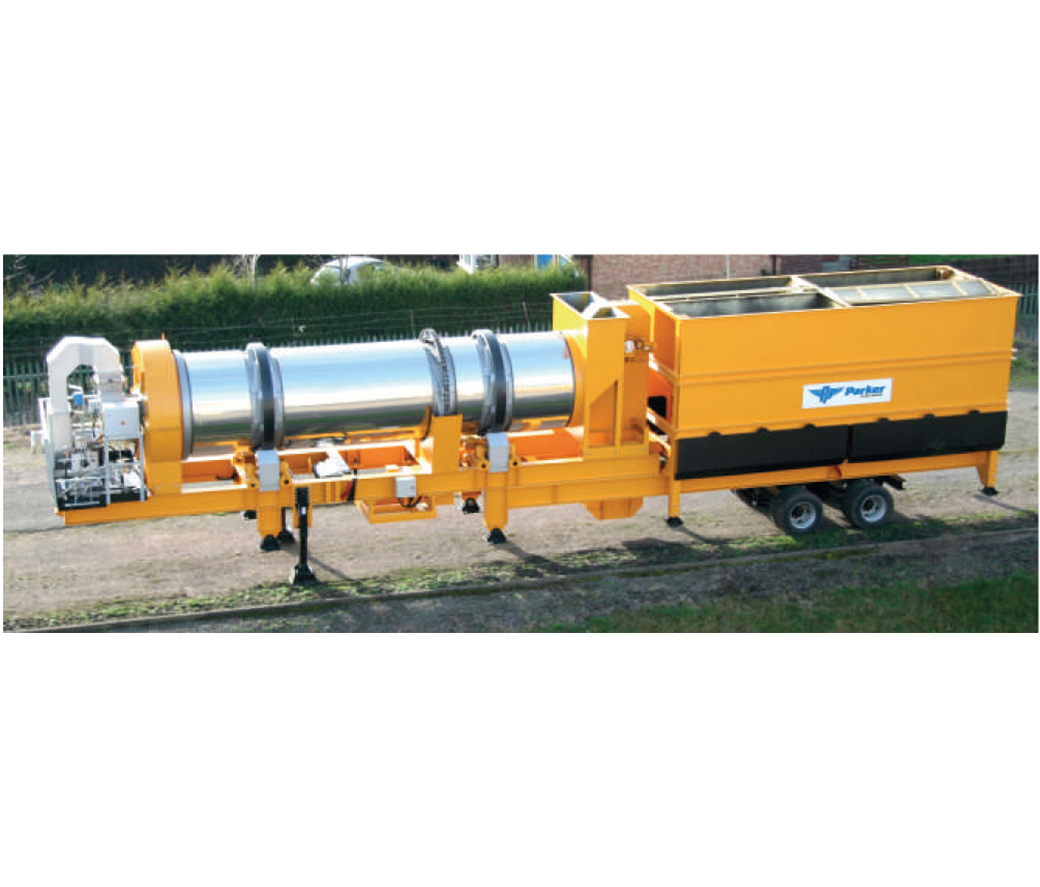

The Super-Black Mobile asphalt batching plant outputs up to 80 tph and the design consists of two main chassis in India. Four independent feed hoppers, dryer and automatic burner are mounted on one chassis while the other carries the vertical elevator, screening, weighing and mixing tower, control cabin, primary cyclones and secondary bag filter.
Installation and erection of the main components is achievable in four hours and with the addition of a bitumen tank and reclaimed filler silo the plant can be put into full production within a day of arrival on site.
Download Catalogue
Transportation to site
The Parker Super-Black Mobile Asphalt Plant range is designed to satisfy asphalt producers worldwide with highly efficient mobile asphalt batch plant, for whom the ability to produce high quality mix coupled with unparalleled mobility is a high priority.
The Super-Black Mobile asphalt batching plant outputs up to 80 tph and the design consists of two main chassis in India. Four independent feed hoppers, dryer and automatic burner are mounted on one chassis while the other carries the vertical elevator, screening, weighing and mixing tower, control cabin, primary cyclones and secondary bag filter.
Installation and erection of the main components is achievable in four hours and with the addition of a bitumen tank and reclaimed filler silo the plant can be put into full production within a day of arrival on site.
Foundations & Stability
The Parker Super-Black Mobile Asphalt Plant range is designed to satisfy asphalt producers worldwide with highly efficient mobile asphalt batch plant, for whom the ability to produce high quality mix coupled with unparalleled mobility is a high priority.
The Super-Black Mobile asphalt batching plant outputs up to 80 tph and the design consists of two main chassis in India. Four independent feed hoppers, dryer and automatic burner are mounted on one chassis while the other carries the vertical elevator, screening, weighing and mixing tower, control cabin, primary cyclones and secondary bag filter.
Installation and erection of the main components is achievable in four hours and with the addition of a bitumen tank and reclaimed filler silo the plant can be put into full production within a day of arrival on site.
Unique Cold Feed Unit
The Parker Super-Black Mobile Asphalt Plant range is designed to satisfy asphalt producers worldwide with highly efficient mobile asphalt batch plant, for whom the ability to produce high quality mix coupled with unparalleled mobility is a high priority.
The Super-Black Mobile asphalt batching plant outputs up to 80 tph and the design consists of two main chassis in India. Four independent feed hoppers, dryer and automatic burner are mounted on one chassis while the other carries the vertical elevator, screening, weighing and mixing tower, control cabin, primary cyclones and secondary bag filter.
Installation and erection of the main components is achievable in four hours and with the addition of a bitumen tank and reclaimed filler silo the plant can be put into full production within a day of arrival on site.
Hot Stone Elevator
The Parker Super-Black Mobile Asphalt Plant range is designed to satisfy asphalt producers worldwide with highly efficient mobile asphalt batch plant, for whom the ability to produce high quality mix coupled with unparalleled mobility is a high priority.
The Super-Black Mobile asphalt batching plant outputs up to 80 tph and the design consists of two main chassis in India. Four independent feed hoppers, dryer and automatic burner are mounted on one chassis while the other carries the vertical elevator, screening, weighing and mixing tower, control cabin, primary cyclones and secondary bag filter.
Installation and erection of the main components is achievable in four hours and with the addition of a bitumen tank and reclaimed filler silo the plant can be put into full production within a day of arrival on site.
Dust Filtration
The Parker Super-Black Mobile Asphalt Plant range is designed to satisfy asphalt producers worldwide with highly efficient mobile asphalt batch plant, for whom the ability to produce high quality mix coupled with unparalleled mobility is a high priority.
The Super-Black Mobile asphalt batching plant outputs up to 80 tph and the design consists of two main chassis in India. Four independent feed hoppers, dryer and automatic burner are mounted on one chassis while the other carries the vertical elevator, screening, weighing and mixing tower, control cabin, primary cyclones and secondary bag filter.
Installation and erection of the main components is achievable in four hours and with the addition of a bitumen tank and reclaimed filler silo the plant can be put into full production within a day of arrival on site.
Control Cabin
The Parker Super-Black Mobile Asphalt Plant range is designed to satisfy asphalt producers worldwide with highly efficient mobile asphalt batch plant, for whom the ability to produce high quality mix coupled with unparalleled mobility is a high priority.
The Super-Black Mobile asphalt batching plant outputs up to 80 tph and the design consists of two main chassis in India. Four independent feed hoppers, dryer and automatic burner are mounted on one chassis while the other carries the vertical elevator, screening, weighing and mixing tower, control cabin, primary cyclones and secondary bag filter.
Installation and erection of the main components is achievable in four hours and with the addition of a bitumen tank and reclaimed filler silo the plant can be put into full production within a day of arrival on site.
Technical Specifications of Mobile Asphalt Batching Plant
| Units | SBM1000 | |||||
|---|---|---|---|---|---|---|
| Plant Capacity | ||||||
| Output* | tph | 80 | ||||
| Cold Feed | ||||||
| Hopper Capacity (heaped) | m³ | 5.0 | ||||
| Hopper Loading Width | m | 3.0 | ||||
| Belt Feeder Centers | mm | 1200 | ||||
| Belt Width | mm | 500 | ||||
| Belt Feeder Drive | kW | 2.2 | ||||
| Vibrator Fitted to Sand Hopper | YES | |||||
| Collecting Conveyor Width | mm | 500 | ||||
| Collecting Conveyor Drive | kW | 2.2 | ||||
| Aggregate Dryer | ||||||
| Dryer Drum Diameter | m | 1.5 | ||||
| Dryer Drum Length | m | 6.5 | ||||
| Dryer Drive | kW | 22.0 | ||||
| Dryer Capacity | tph | 80 | ||||
| Air Volume | ||||||
| Dryer | m³/h | 22,400 | ||||
| Mixing Section | m³/h | 6,100 | ||||
| Total | m³/h | 28,500 | ||||
| Hot Stone Elevator, Screen & Mixing Section | ||||||
| Elevator Capacity | tph | 90 | ||||
| Elevator Drive | kW | 7.5 | ||||
| Screen Decks | No. | 2 (4 size + rejects) | ||||
| Screen Length | m | 3.0 | ||||
| Screen Width | m | 1.5 | ||||
| Screen Drive | kW | 7.5 | ||||
| Hot Storage Capacity | t | 8 | ||||
| Aggregate Weigh Hopper Capacity | kg | 1000 | ||||
| Bitumen Weigh Hopper Capacity | kg | 200 | ||||
| Filler Weigh Hopper Capacity | kg | 200 | ||||
| Paddle Mixer Capacity | kg | 1000 | ||||
| Paddle Mixer Drive | kg | 2 x 11.0 |
Mobile Asphalt Plant Benefits
- Fully mobile road towable units
- Minimum foundations required
- Fast on-site erection
- Factory pre-wired & fully tested
- Inverter controlled exhaust fan
- Dust emissions less than 20mg/Nm3
FAQs - Mobile Asphalt Batch Plant
The Super BlackMobile 1000 80tph - Asphalt Batch Plant boasts several key features that make it a preferred choice for asphalt production. Firstly, its mobility enables it to be easily transported to various job sites, ensuring flexibility and efficiency in operations. Secondly, its high production capacity of 80 tons per hour ensures timely completion of projects, enhancing productivity. Lastly, its advanced control system allows for precise monitoring and adjustment of the asphalt production process, ensuring consistency and quality in output.
Investing in Mobile Asphalt Plant, Super BlackMobile 1000 80tph offers numerous benefits for asphalt production companies. Firstly, its high production capacity allows for increased output, enabling companies to meet growing demand and capitalize on opportunities for expansion. Secondly, its mobility enables operations to be conducted closer to project sites, reducing transportation costs and logistical complexities. Additionally, its advanced control system ensures consistent quality, enhancing customer satisfaction and reputation in the industry.
The Super BlackMobile 1000 80tph is designed to enhance operational efficiency in asphalt production. Firstly, its modular construction allows for quick and easy assembly, minimizing downtime and maximizing uptime. Secondly, its advanced control system enables operators to efficiently monitor and adjust production parameters, optimizing performance and resource utilization. Additionally, its compact footprint saves space and facilitates seamless integration into existing production facilities, further streamlining operations.
As a leading manufacturer of Asphalt Plants in India, Parker Plant India Pvt. Ltd. provides technical assistance, operator training, and spare parts availability for the Super BlackMobile 1000 80tph asphalt batch plant, ensuring smooth operation and minimal downtime. Our comprehensive support services underscore our commitment to customer satisfaction and the efficient functioning of asphalt production operations.
Super BlackMobile 1000 features include being fully mobile and road-towable, requiring minimum foundations, fast on-site erection, factory pre-wired & fully tested, an inverter-controlled exhaust fan, and dust emissions less than 20mg/Nm3.
