StarBatch Range
Modular Asphalt Plant 80 / 120 / 160 / 200
The Parker StarBatch range Modular Asphalt Batching Plant is designed to offer customers worldwide a lower capital-cost modular asphalt batch plant while maintaining many StarMix range features.
Modular Asphalt Batch Plant is capable of producing a wide range of high-quality mixes, and this European-designed modular asphalt plant is now being manufactured in India.
Utilizing the latest technology, the StarBatch range asphalt plant offers customers a cost-effective and versatile solution to meet the demands of any modern-day road project. Parker Plant is a leading manufacturer and supplier of Asphalt Batching plants in India.
Download Catalogue
Cold Feed
Compact transportable multi-hopper, cold feed unit with built in collecting conveyor, scalping screen and dryer feed conveyor.
Direct drive geared motor units provide high reliability and accurate variable speed control via AC motor and inverter.
Aggregate Dryer
Advanced design of internal lifters optimising thermal efficiency for maximum heat transfer. Nylon support & thrust rollers to reduce wear on dryer roller paths and noise. Choice of multi-fuel burners available.
Screen
Heavy duty aggregate screen within a fully enclosed and sealed dust housing.
Paddle Mixer
Fully synchronised direct drive twin shaft paddle mixer with abrasion resistant liner plates, paddle arms and tips.
Modular Asphalt Plant Products Range

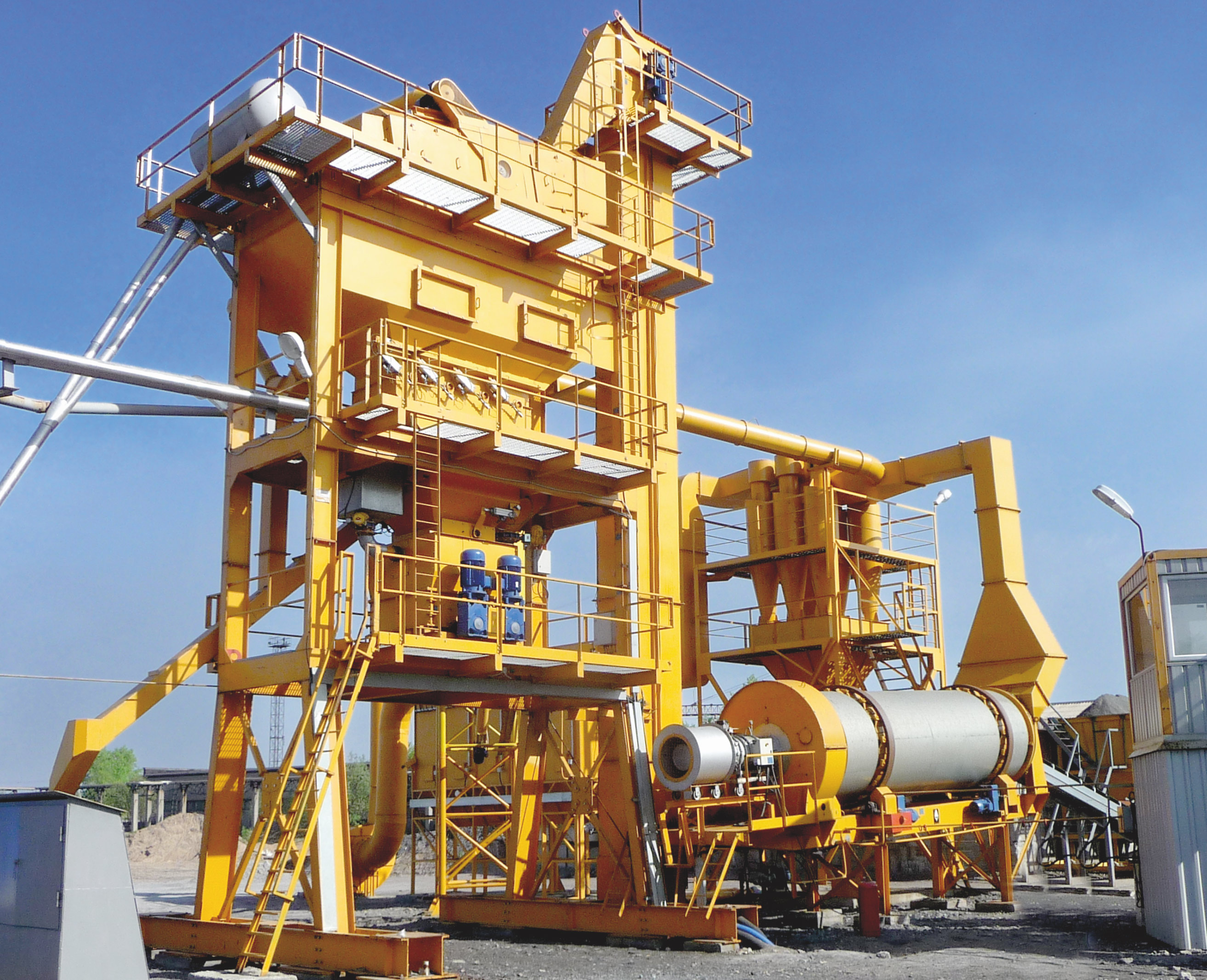

StarBatch 80

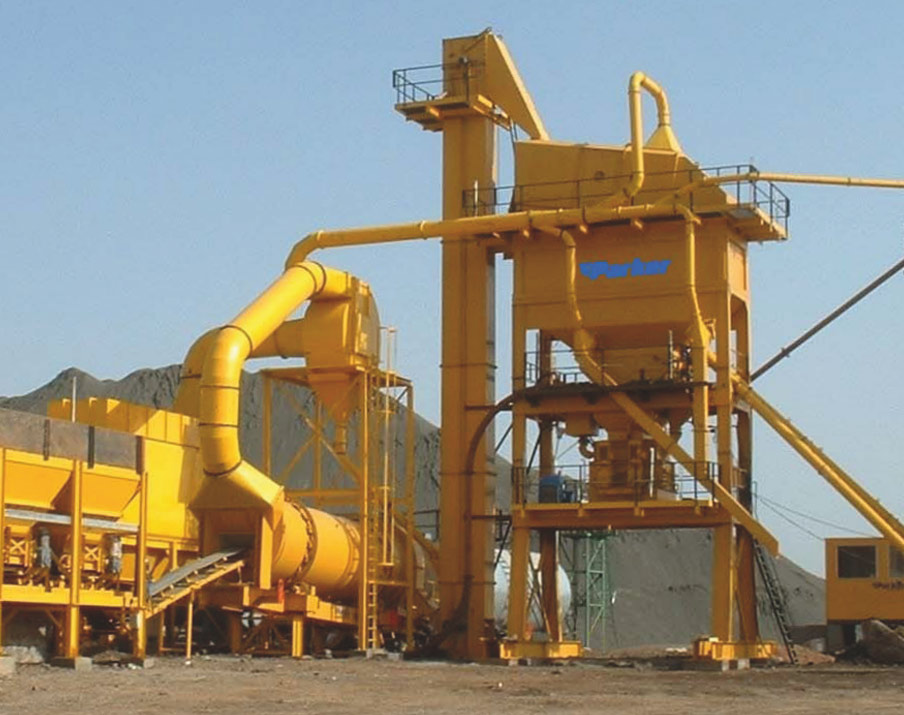

StarBatch 120

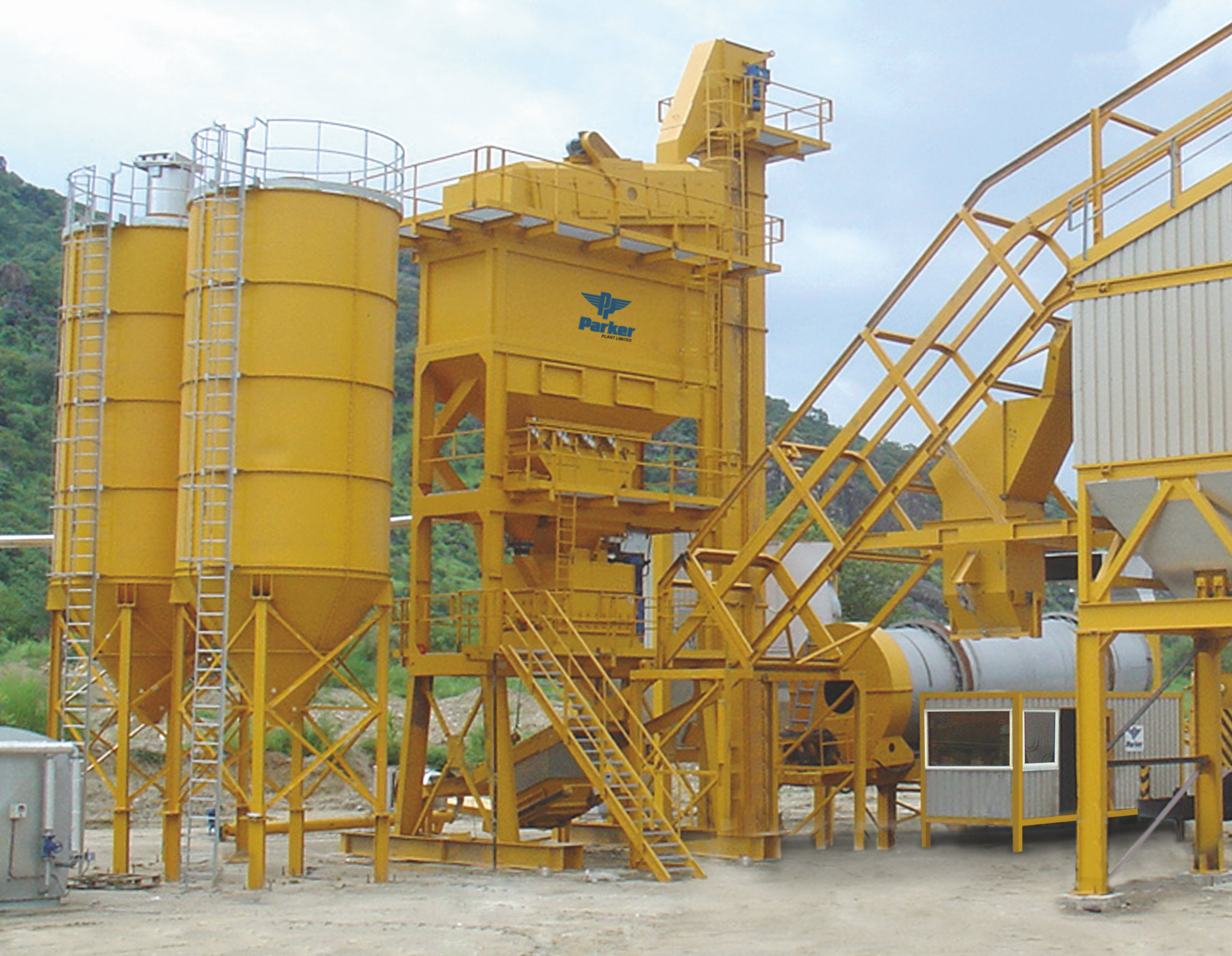

StarBatch 160

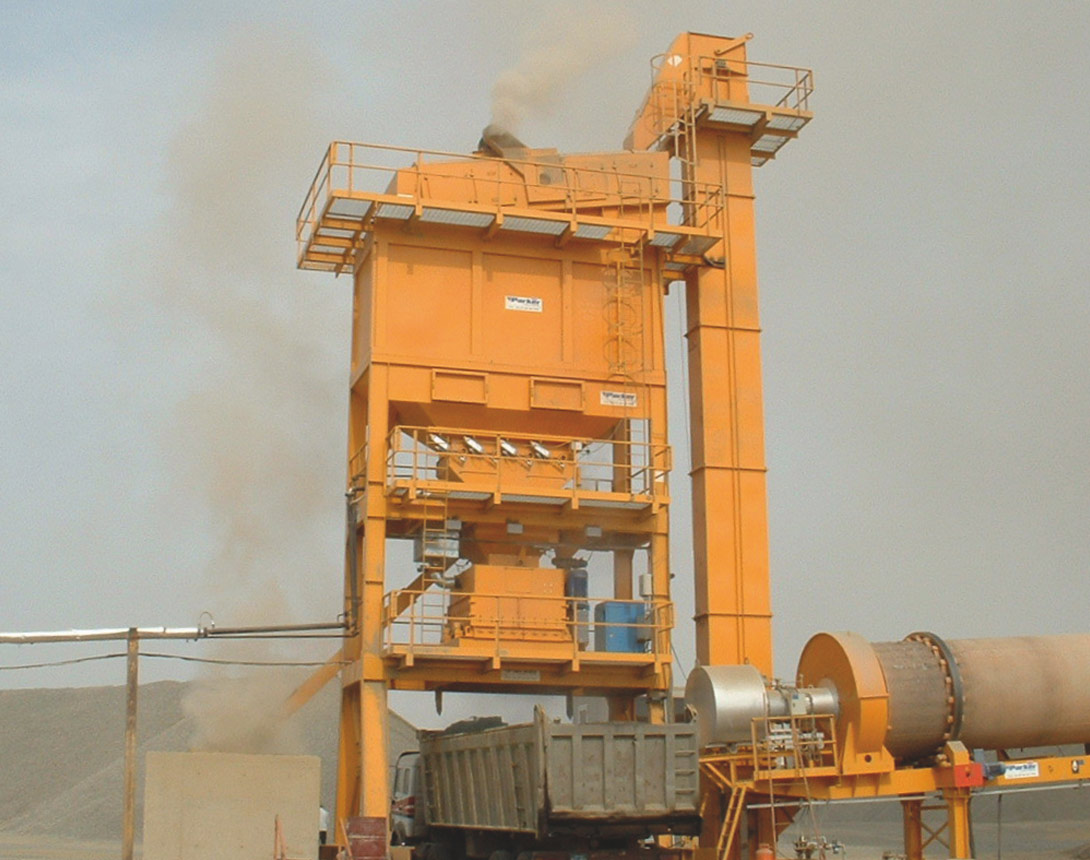

StarBatch 200
Technical Specifications of Asphalt Batching Plant
| Units | StarBatch 80 | StarBatch 120 | StarBatch 160 | StarBatch 200 | |
|---|---|---|---|---|---|
| Modular Asphalt Machinery/Plant Capacity | |||||
| Output* | tph | 80 | 120 | 160 | 200 |
| Cold Feed | |||||
| Hopper Capacity (heaped) | m³ | 8 | 8 | 10 | 10 |
| Hopper Loading Width | m | 3 | 3 | 3 | 3 |
| Belt Feeder Length | mm | 1500 | 1500 | 1500 | 1500 |
| Belt Width | mm | 500 | 500 | 500 | 600 |
| Belt Feeder Drive | kW | 1.5 | 1.5 | 2.2 | 2.2 |
| Vibrator Fitted to Sand Hopper | YES | YES | YES | YES | |
| Collecting Conveyor Width | mm | 500 | 600 | 600 | 650 |
| Collecting Conveyor Drive | kW | 4.0 | 4.0 | 5.5 | 5.5 |
| Aggregate Dryer | |||||
| Dryer Drum Diameter | m | 1.5 | 1.8 | 2.0 | 2.2 |
| Dryer Drum Length | m | 6.5 | 7.0 | 8.0 | 8.0 |
| Dryer Drive | kW | 4.4 x 5.5 | 4.4 x 7.5 | 4 x 11.0 | 4 x 15.0 |
| Air Volume | |||||
| Total | Nm³/h | 17,000 | 25,770 | 31,940 | 31,940 |
| Hot Stone Elevator, Screen & Mixing Section | |||||
| Elevator Capacity | tph | 90 | 140 | 180 | 220 |
| Elevator Drive | kW | 11.0 | 11.0 | 15.0 | 15.0 |
| Screen Decks No. | No. | 2 (4 sizes + rejects) | 2 (4 sizes + rejects) | 2 (4 sizes + rejects) | 2 (4 sizes + rejects) |
| Screen Size (length x width) | m | 4.0 x 1.5 | 4.0 x 1.8 | 5.0 x 1.8 | 5.0 x 1.8 |
| Screen Drive | kW | 7.5 | 11.0 | 11.0 | 11.0 |
| Hot Storage Capacity | t | 20 | 20 | 25 | 25 |
| Hot Storage Bins | No | 4 | 4 | 4 | 4 |
| Aggregate Weigh Hopper Capacity | kg | 1250 | 1750 | 2250 | 3250 |
| Bitumen Weigh Hopper Capacity | kg | 100 | 150 | 200 | 450 |
| Filler Weigh Hopper Capacity | kg | 150 | 225 | 300 | 600 |
| Paddle Mixer Capacity | kg | 1250 | 1750 | 2250 | 3250 |
| Paddle Mixer Drive | kW | 2 x 11.0 | 2 x 18.5 | 2 x 22.0 | 2 x 37.0 |
*Plant capacity is based on 150°C from mixer. Average moisture content of 3%, including 5% filler and 5% bitumen in the mix at sea level with 30°C ambient temperature, 45 second weigh/mix cycle, 80 batches per/hr.
Modular Asphalt Plant Benefits
- Flexible asphalt plant layout - with low or high level options
- Complete asphalt machinery plant designed for ease of access and maintenance
- High thermal efficiency dryer with proven replaceable lifter design
- Nylon designed support and thrust rollers for reduced dryer wear & noise
- Fully automatic multi-fuel burner options with Asphalt Machinery
- Asphalt feed systems (RAP) and SMA fibre/additive systems available
FAQs - Modular Asphalt Batching Plant
The available units for asphalt machinery/plant capacity are StarBatch 80 (80 tph), StarBatch 120 (120 tph), StarBatch 160 (160 tph), and StarBatch 200 (200 tph).
Purchasing the Modular Asphalt Batching Plant StarBatch Range (80 / 120 / 160 / 200) from Parker Plant India Pvt. Ltd. offers several advantages:
- Proven Performance: Parker Plant India Pvt. Ltd. is renowned for its high-quality asphalt machinery, ensuring reliable and efficient performance.
- Versatility: The StarBatch range offers a variety of capacities (80, 120, 160, and 200 tph), catering to different project requirements and allowing flexibility in production.
- Modularity: These asphalt batching plants are designed with modularity in mind, facilitating easy installation, maintenance, and expansion if needed.
- Advanced Technology: Parker Plant India Pvt. Ltd. incorporates advanced technology into their equipment, enhancing productivity and ensuring consistent quality of output.
- Local Support: Purchasing from Parker Plant India Pvt. Ltd. provides access to local support, including maintenance services, spare parts availability, and technical assistance, ensuring smooth operation of the equipment.
The Modular Asphalt Batching Plant StarBatch Range (80 / 120 / 160 / 200) from Parker Plant India Pvt. Ltd. is manufactured locally in India. This ensures that the equipment is tailored to meet the specific needs and standards of the Indian market while also benefiting from Parker Plant's expertise and technology.
To ensure the quality of the Asphalt plant from Parker Plant India Pvt. Ltd., the company employs stringent quality control protocols. This includes using premium-grade materials, adhering to rigorous manufacturing standards, conducting thorough testing and inspections at every stage of production, and providing comprehensive after-sales support for maintenance and calibration.
The StarBatch range modular asphalt batching plant is useful in various construction projects requiring different output capacities. Whether it's for small-scale road repairs or large-scale highway construction, the StarBatch 80, 120, 160, and 200 units cater to different project requirements, ensuring efficient asphalt production tailored to specific needs.
About Company
With over 100 years of experience as one of the leading manufacturers, exporters & suppliers of asphalt plant and machinery in India, Parker Plant has established itself as a reliable solution provider for quarrying, construction, road infrastructure and recycling projects with modular and mobile asphalt batch mix plants throughout the world.
